ChamClad® Cladding, Soffit & Interior Panels
Made in Canada
Low-maintenance PVC cladding with a realistic woodgrain look, for exterior walls, soffits, interior walls and ceilings, and beam and column wraps. Made in Canada from recycled PVC.
- Shadowline, Classic, Seamless and Board & Batten profiles
- Matching soffit, interior panels, beams and column wraps
- Woodgrain, ultra-matte solid and metallic finishes
- Install horizontally or vertically
- 50-year limited warranty on exterior cladding (15 years non-prorated)

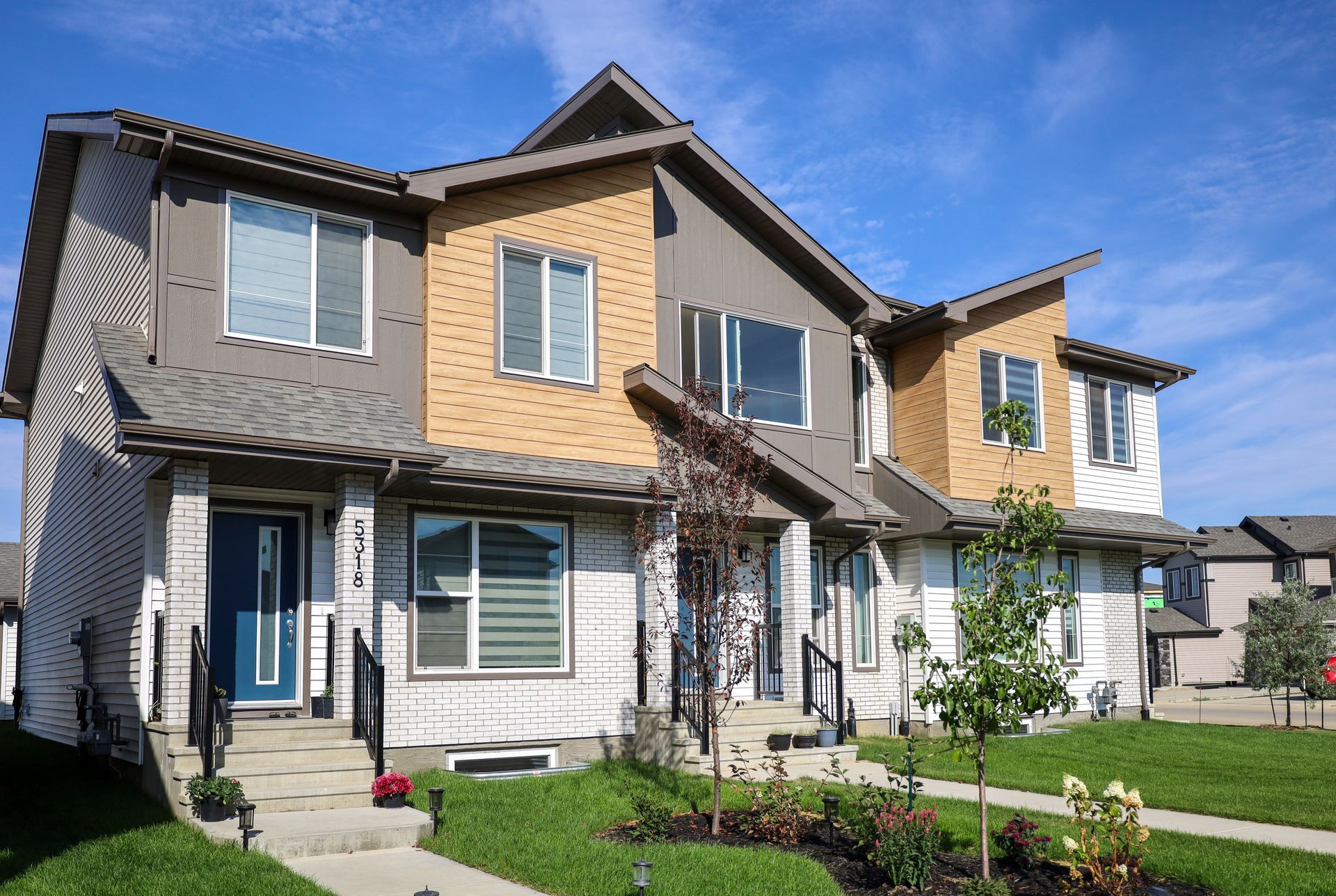

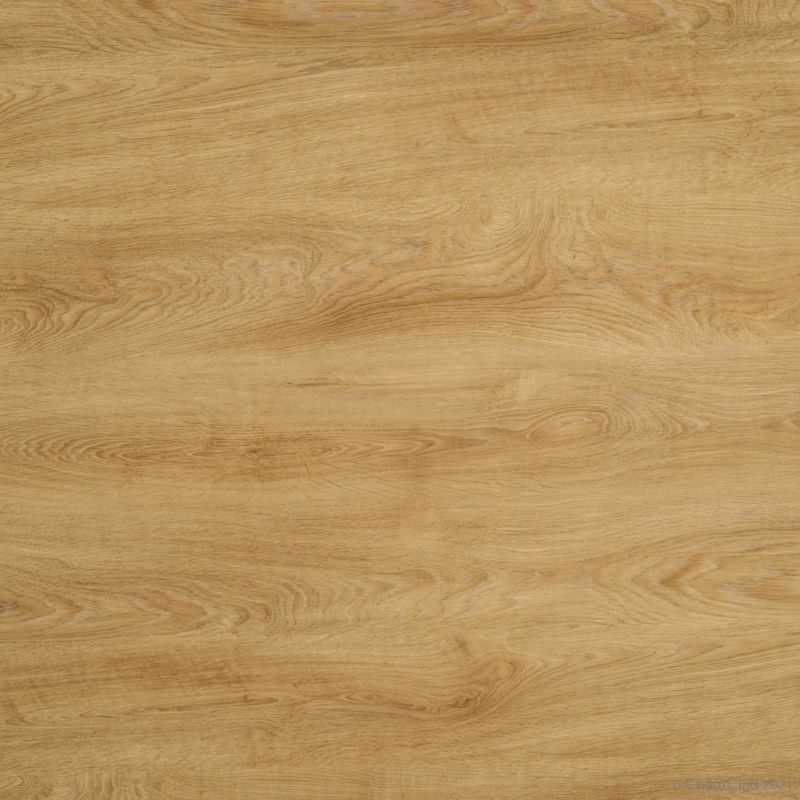

Finish Sunbleached Oak 6020
Choose from all 41 ChamClad finishes ↓
See ChamClad samples at our Langley showroom, 5837 Production Way. More finishes are available on chamclad.com.
About ChamClad
ChamClad® is a Canadian manufacturer of PVC cladding systems. The panels are rigid PVC with a laminated woodgrain or solid finish, giving the warm look of wood or the clean look of a modern solid without the upkeep of natural materials.
The Shadowline series has a deep ¼″ groove for crisp shadow lines, and its black core pigments are UV stable and heat reflective. Panels install horizontally or vertically, and profiles in the series can be mixed on the same wall.
Profiles
Every ChamClad profile, shown in a woodgrain finish. Most profiles are available in the finishes below.
Exterior cladding
6″ Shadowline Wall Panel ½″
Material: Rigid PVC
Lengths: 12’, 16’ & 20’ Custom Lengths Available
6″ Shadowline Wall Panel with 3″ Reveal ½″
Material: Rigid PVC
Lengths: 12′, 16′, 20′ & Custom Lengths Available
12″ Shadowline Wall Panel with 2″ Reveal ½″
Material: Recycled Rigid PVC
Lengths: 12′ & 16′ Lengths
12″ Seamless Shadowline Wall Panel ½″
Material: Rigid PVC
Lengths: 12′ & 16′

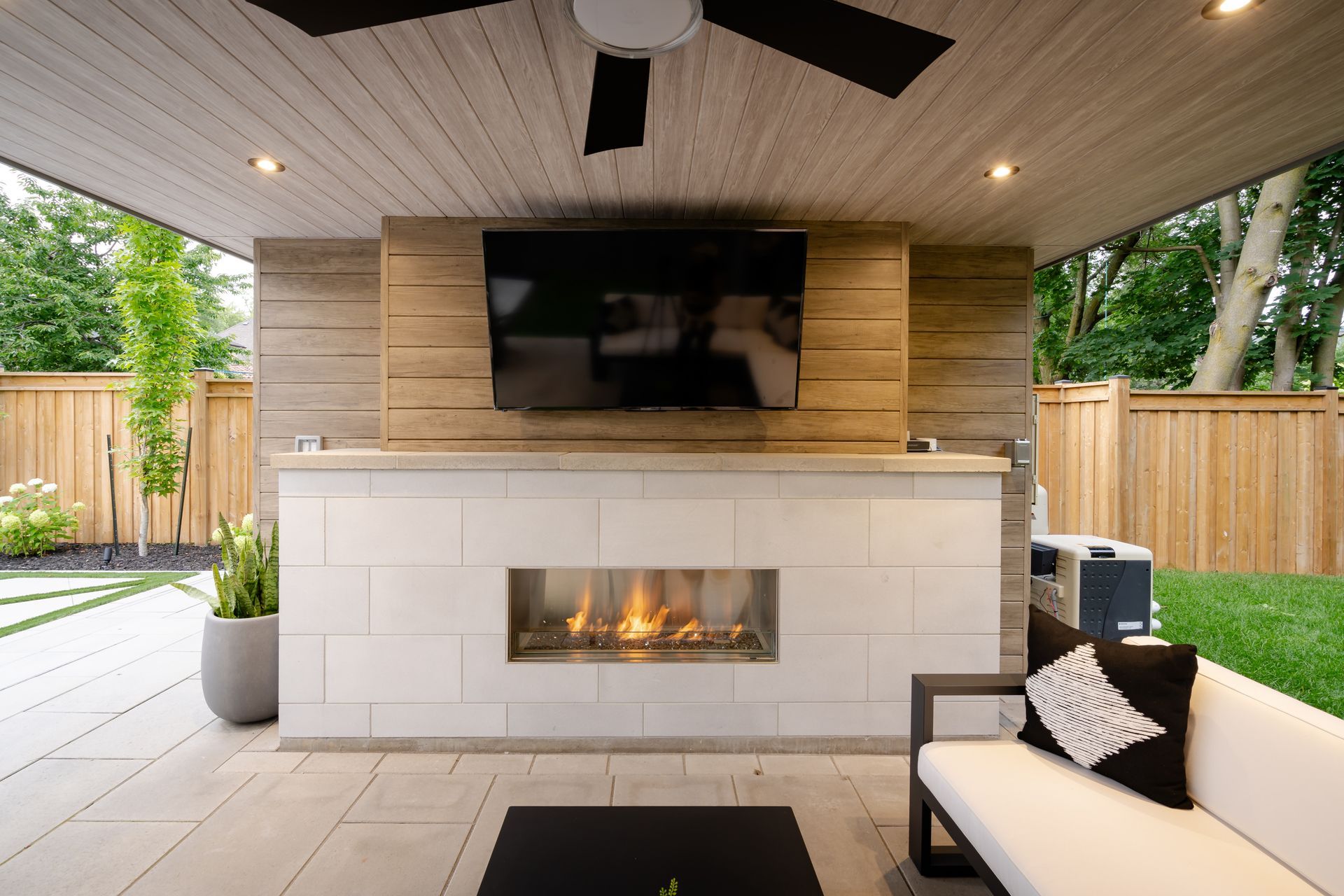

6″ Classic Wall Panel ½″
Material: Recycled Rigid PVC
Lengths: Solid – 12′, 16′, 20′, 30′ & Custom Lengths Available

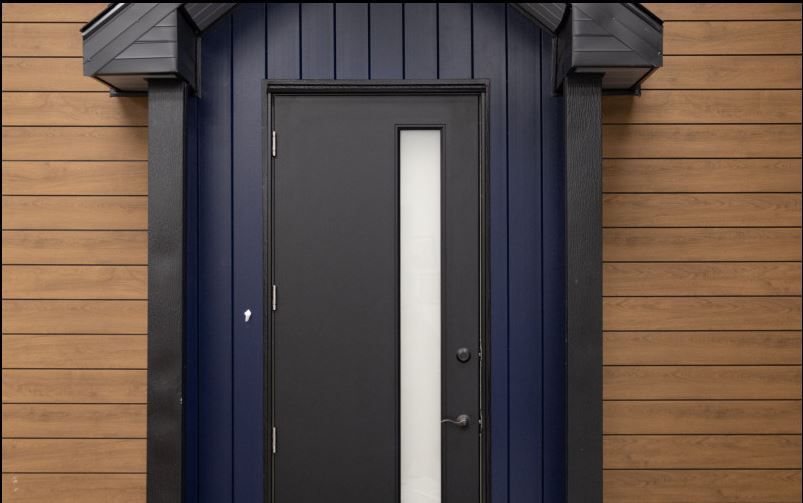

Board and Batten
Material: Rigid PVC
Lengths: Contact for Information

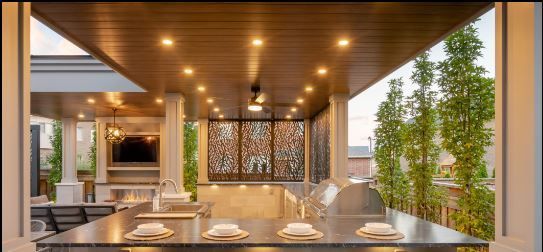

Soffit
4″ Traditional Solid Soffit Panel ⅜″
Material: Rigid PVC
Lengths: 12′ & 20′
6″ Traditional Solid Soffit Panel ⅜″
Material: Rigid PVC
Lengths: 12’, 16’, 20’, 30’ & Custom Lengths available
12″ Traditional Seamless Soffit Panel ⅜″
Material: Rigid PVC
Lengths: 12′ & 20′
6″ Quick Click Shadowline Soffit ½″
Material: Rigid PVC
Lengths: 12’, 16’ & 20′
Interior walls & ceilings
4″ Flexible Interior Wall & Ceiling Panel ⅜″
Material: Rigid PVC
Lengths: 12′ & 20′
6″ Flexible Interior Wall & Ceiling Panel ⅜″
Material: Rigid PVC
Lengths: 12′, 16′ & 20′
12″ Interior Wall & Ceiling Seamless Panel ⅜″
Material: Rigid PVC
Lengths: 12′ & 20′
4″ Interior Wall & Ceiling Panel ⅜″
Material: Rigid PVC
Lengths: 12′, 20′ & Custom Lengths Available
6″ Interior Wall & Ceiling Panel ⅜″
Material: Rigid PVC
Lengths: 12’, 20’ & Custom Lengths available

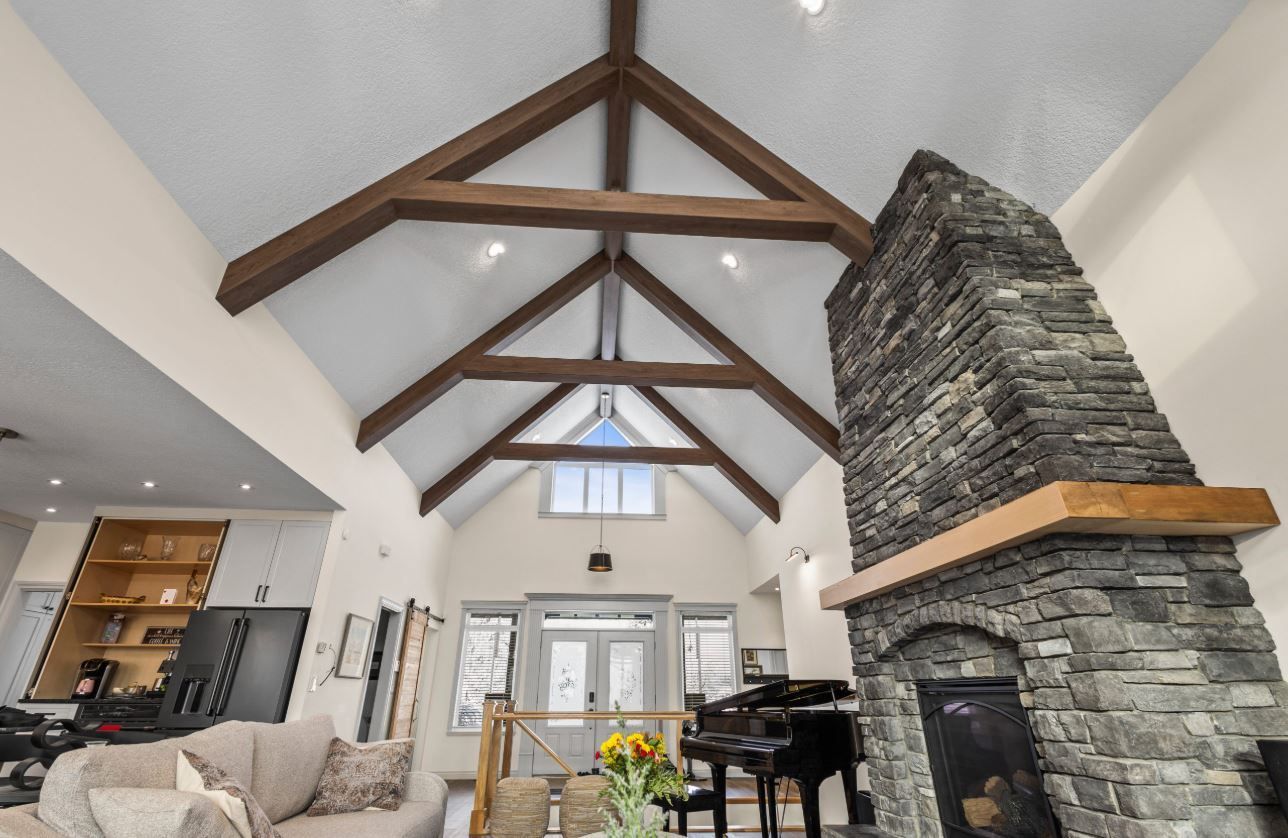

Beams, posts & column wraps
Quick Click Column and Beam
Material: PVC
Lengths: 10′ & 20′
2PC Column Wrap 7″
2PC Faux Beam 5.5″ × 3.35″
Privacy Wall / Screen
Material: PVC
Lengths: 10′, 20′
Profile details from chamclad.com. Some profiles (like the privacy wall / screen) may be new or limited; ask us about availability.
Finishes
Pick a finish to add it to your quote request. 41 finishes are available; some are stocked and others are special order, so ask us what's in stock.

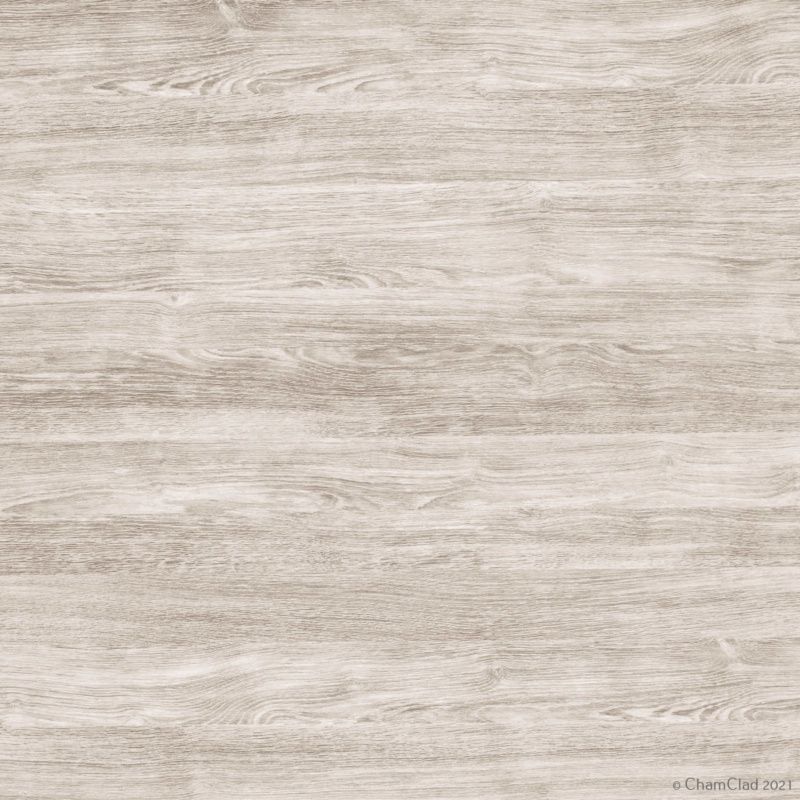

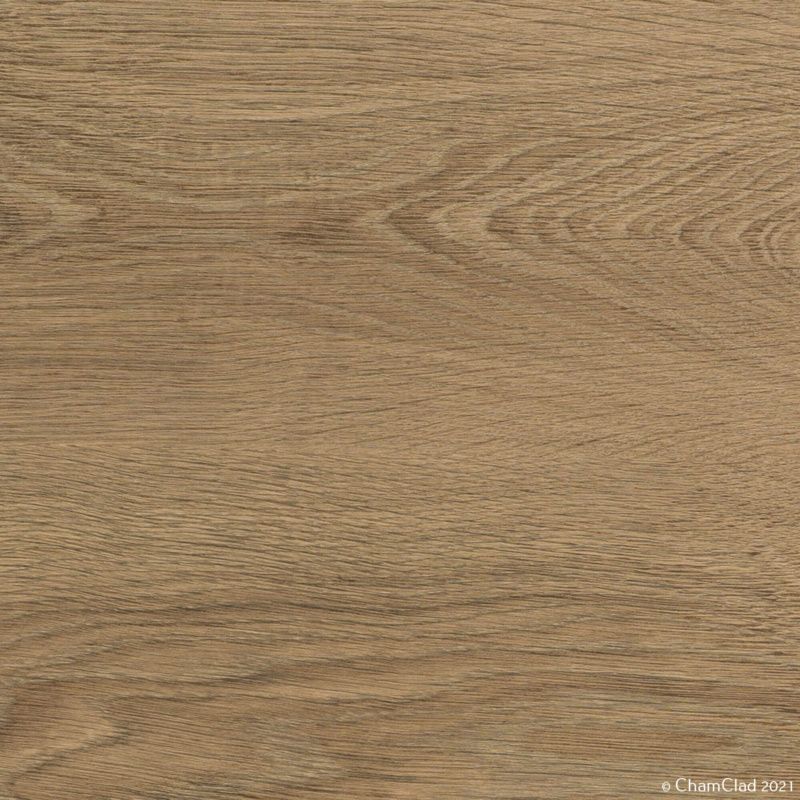

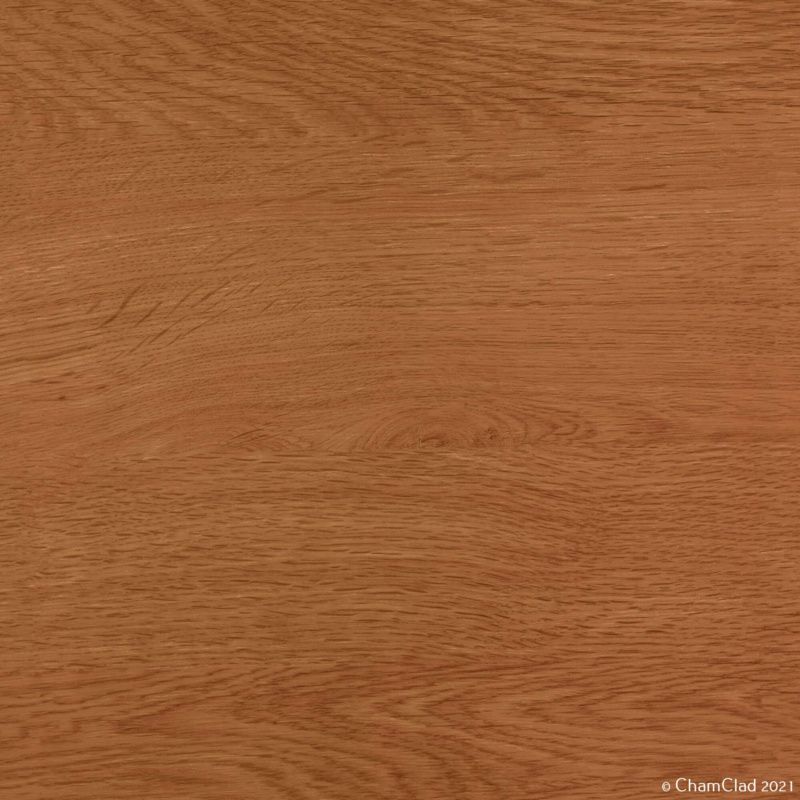

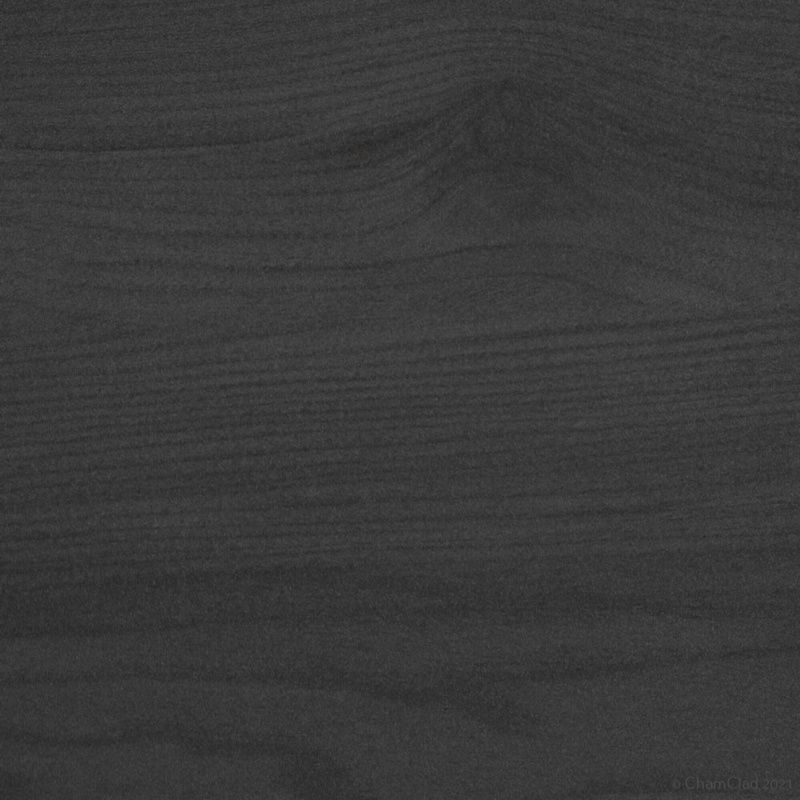

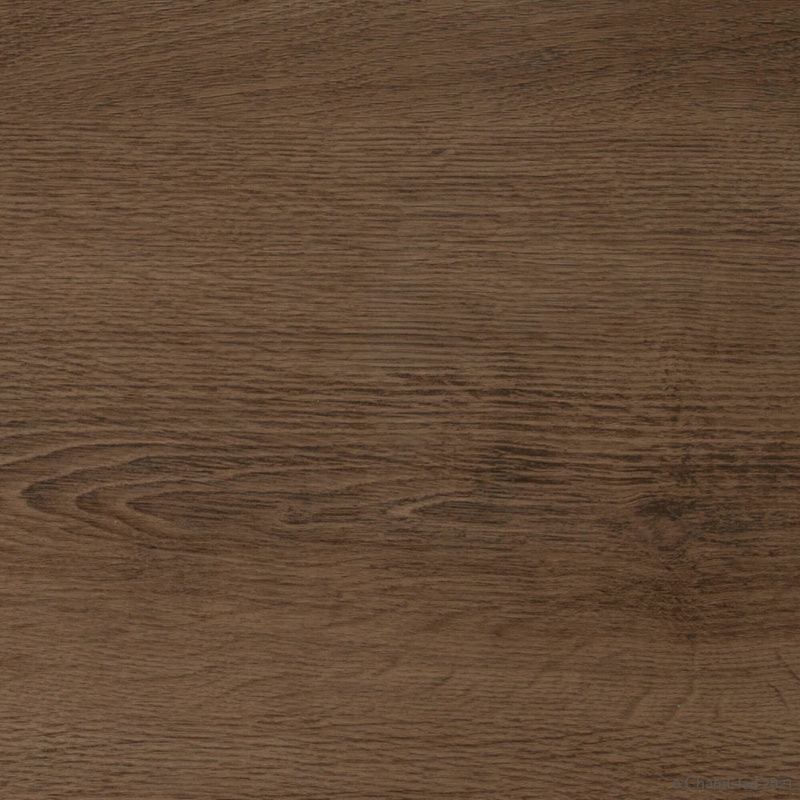

Woodgrain
Matte PVDF woodgrain finishes.
Ultra-matte solids
New ultra-matte PVDF solid colours.
Anodized, solids & metallics
Special-order brushed metallics and solid colours.
Interior only
For interior walls and ceilings only.
Selected: Sunbleached Oak 6020 Request a quote
Specifications
| Material | Rigid PVC with laminated film finish, made in Canada from recycled PVC |
|---|---|
| Exterior cladding | 6″ and 12″ panels, ½″ thick; board and batten profile |
| Soffit | 4″, 6″ and 12″ panels, ⅜″ thick (Quick Click Shadowline ½″) |
| Interior panels | 4″, 6″ and 12″ panels, ⅜″ thick |
| Lengths | Shadowline panels in 12′, 16′ and 20′; custom lengths available |
| Installation | Horizontal or vertical, with matching J-trim, inside and outside corners and aluminum starter strip |
| Warranty | 50-year limited warranty on siding and cladding, 15 years non-prorated; transferable once to a second homeowner |
Technical documents
- Shadowline data sheet
- Classic wall panel data sheet
- Exterior cladding install manual
- Soffit install manual
- Interior panels data sheet
- Column & beam install manual
- Warranty
- Test reports & certifications
- All finishes
Documents open on chamclad.com.
ChamClad brochure
Planning a ChamClad project?
Tell us about your project and we'll put together a quote.
