Armour Side Textured Steel Siding

About Armour Side

Armour Side is steel cladding with a textured paint finish that's engineered to shed dirt and keep your project looking new. It needs virtually no maintenance: a rinse with a garden hose twice a year is all it takes.

Unlike fibre cement, it's easy to work with and can be installed in any weather without worrying it will crumble later. Armour Side is made in part from recycled steel, and because it's steel, it's 100% recyclable.

Profiles

Siding, folded feature panels, soffit and fascia, all in the same textured finish and colours, with a full line of matching trims.

Siding

Board + Batten and bevel lap siding.

•

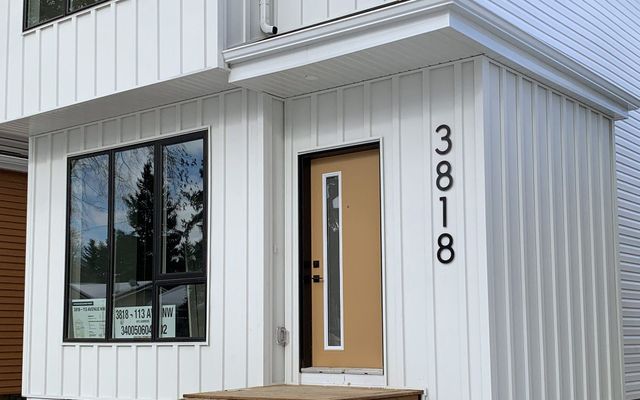

  12″ Board + Batten

  12″ board in 10′ or 13′ lengths, or custom lengths ordered in multiples of 3.

•

  16″ Board + Batten

  16″ board in 10′ or 13′ lengths, or custom lengths ordered in multiples of 2.

•

  6″ Bevel Siding

  Classic lap siding with 6″ coverage. 12′ lengths, 12 pieces per box (75 sq. ft).

Armour Wall

Brake-formed, folded steel panels for a feature wall or a full facade.

•

  Armour Wall Profile 1

  Folded steel panel with a hidden clip system. 10′ or 13′ lengths, or custom.

•

  Armour Wall Profile 2

  Folded steel panel with a hidden clip system. 10′ or 13′ lengths, or custom.

•

  Armour Wall Profile 3

  Folded steel panel with a hidden clip system. 10′ or 13′ lengths; custom lengths in multiples of 3.

•

  Armour Wall Profile 4

  Folded steel panel with a hidden clip system. 10′ or 13′ lengths, or custom.

•

  Armour Wall Profile 5

  Folded steel panel with a hidden clip system. 10′ or 13′ lengths, or custom.

Soffit & Fascia

Matching soffit and fascia to finish the roofline.

•

  Double 7 Soffit

  14″ two-panel soffit for fast installs. Vented or smooth, 12′ lengths.

•

  Double 5 Soffit

  10″ two-panel soffit, a budget-friendly option. Vented or smooth, 12′ lengths.

•

  Fascia

  Drop-down fascia in 7″, 9″, 11″ and 13″ widths, 10′ lengths.

Profile details and images from armourside.com. Custom lengths from 4′ to 24′ are available for Board + Batten and Armour Wall; ask us about order increments.

Why Armour Side

• Low maintenance No painting or caulking touch-ups. Rinse with a garden hose twice a year.
• Non-combustible Steel siding with a Class A fire rating. No melting or cracking, even next to your BBQ.
• Won't rot Steel is impervious to rot, mould, moisture and insects.
• Install in any weather Easy to work with and won't crumble like fibre cement.
• Textured finish Triple-coat SMP paint sheds dirt and resists fading and corrosion.
• Recycled content 5% pre-consumer and 15–20% post-consumer recycled steel, with LEED documentation.

Colours

Pick a colour to add it to your quote request, or click it to see it larger. Armour Side's triple-coat textured paint gives a luminous satin finish.

Textured colours

All 16 colours are available in every Armour Side profile.

• Smokey Cayenne
• Desert Taupe
• Navy Blue
• Honey Blonde
• Seafoam Mist
• Spanish Moss
• Oxford White
• Bridgetown Beige
• Sahara Tan
• Grey Mist
• Blue Pearl
• Twilight Grey
• Antique Rosewood
• Tuscan Coffee
• Sierra Brown
• Victorian Onyx

Selected: Blue Pearl Request a quote

Colours from armourside.com. Screen colours vary, so choose from actual samples at our showroom.

Specifications

Technical documents

• Armour Side brochure
• Board + Batten data sheet
• Board + Batten install guide
• Armour Wall data sheet
• Armour Wall install guide
• Bevel siding data sheet
• Bevel install guide
• Double 7 soffit data sheet
• Double 5 soffit data sheet
• Fascia data sheet
• Trim guide
• Warranty
• CCMC evaluation 14153-L
• Fire & test reports

Documents open on armourside.com.
